Printing a Badge

Printing a Badge

Once a badge template has been chosen and uploaded to the Eyrus dashboard you have the ability to print the badge using your badge printer.



To print a badge please follow the steps below:

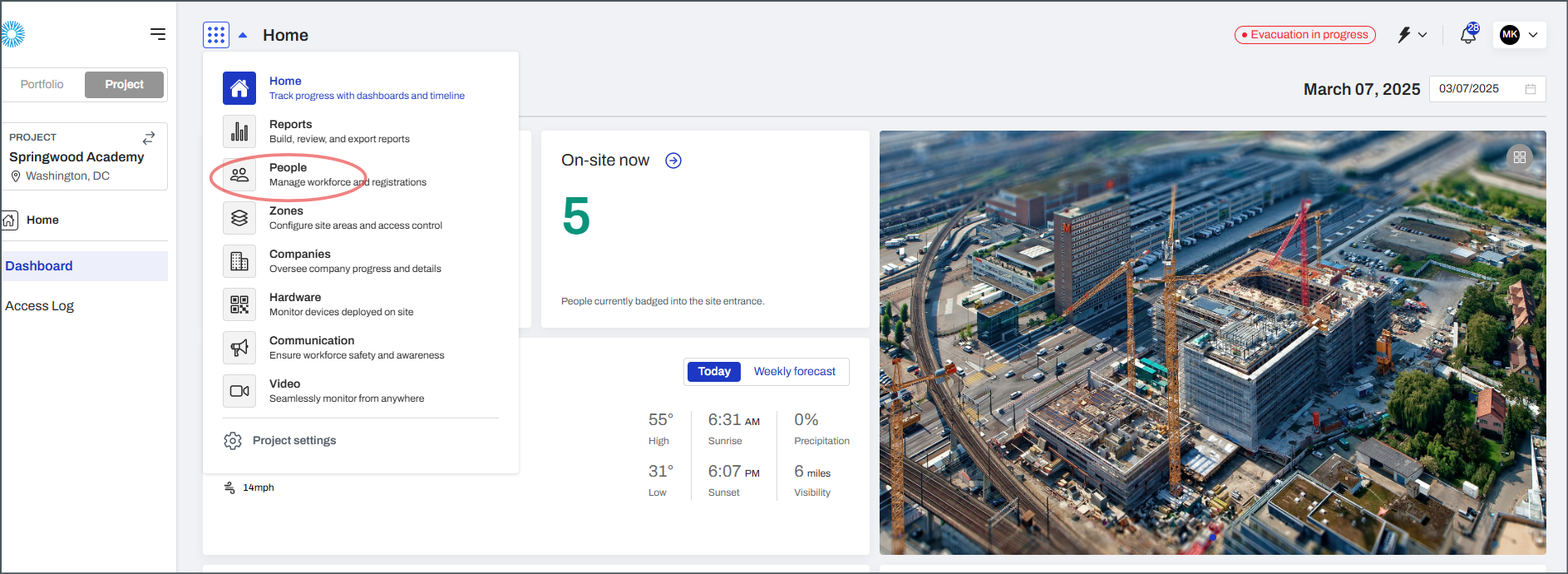

1.  From the home page click on the tile menu at the top of the page then click on people.

printing a badge snip 1.png

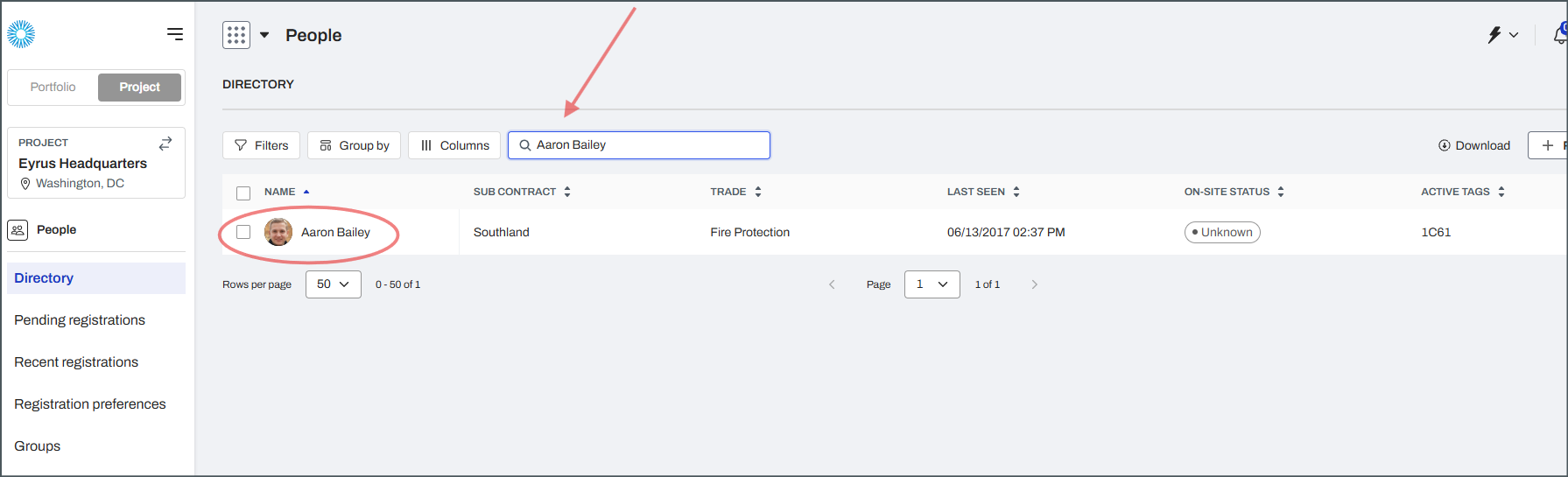

2. Once in the people page type in the name of the worker whose badge you would like to print.

  • Once you find them in the directory go to their profile by clicking on their name.

printing a badge snip 2.png

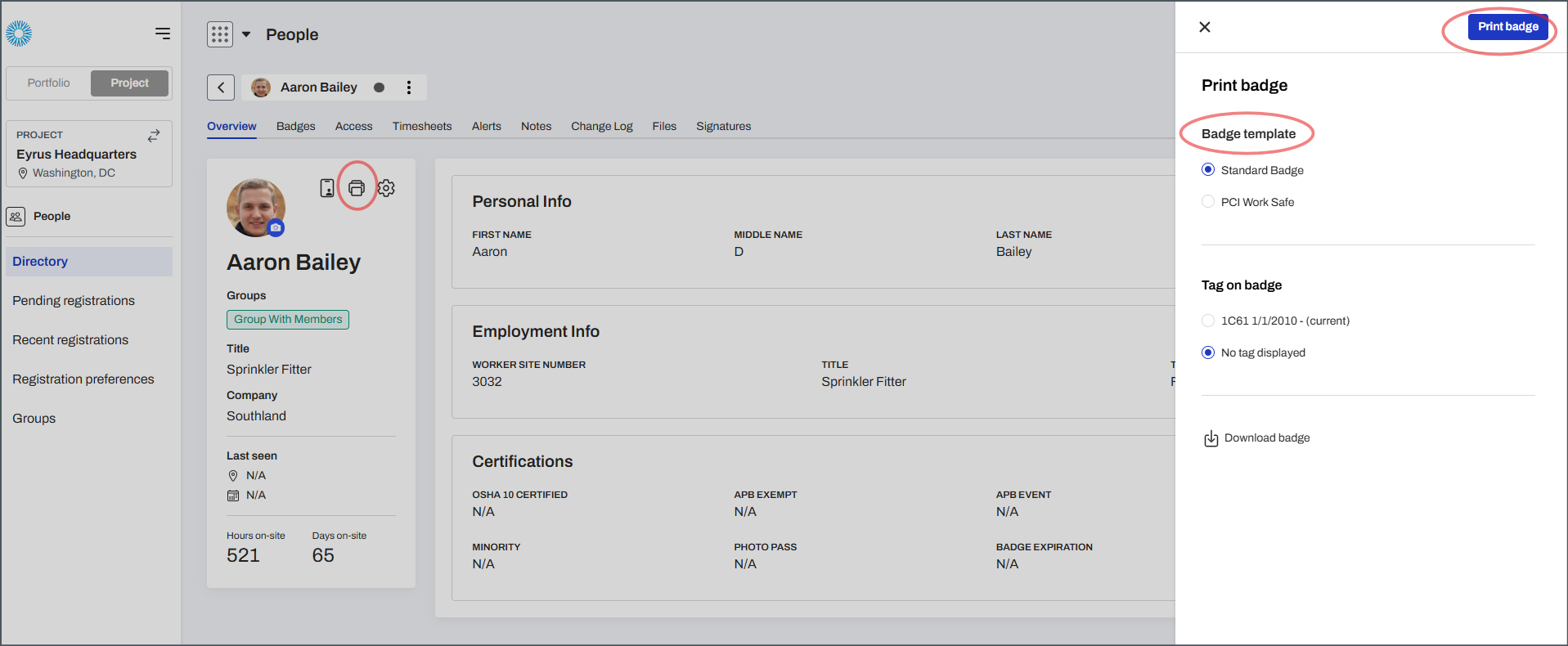

3.  Inside the worker profile you will see a printer icon next to the profile picture - click on the icon.

  • Once clicked a side bar will open where you can select the badge template you would like to print on.
  • You can also select the badge number, if applicable to your process flow.
  • Once these options are selected you can click print badge in the top right.
  • If you just want to download the badge image that is an option as well - at the bottom of the page.

printing a badge snip3.png

4.  Once the printer dialog box has opened first start by making sure the card printer is selected under "destination."

  • Once the correct destination is selected then click on "more settings".

5.  Under more settings make sure the paper size is for a CR80 card

  • Also make sure the scale is set to 31.
  • Once both of these settings have been set you are ready to print, click "print" at the bottom.





Here is some helpful information to assist you and your team with our preferred IDP Printer



Our recommended printer model is: IDP Smart 31S

  • Here you will find printer set-up and driver information
  • If you encounter any trouble replacing the ribbon. Please watch this helpful walk through video.
  • Each printer ribbon can print 250 badges.
  • We'd like you to know, while you all purchase these printers from us. We are happy to help with any simple questions and we will guide you all and be a resource as things come up from time to time.
  • However, we are limited in our range of support. That being said we do have an agreement with the vendor that includes their warranty as well as access to their support. If at any time you encounter an issue that is not related to our software but rather the printer itself you may reach out to IDP support directly for assistance. They are incredibly helpful. You can reach them at: 401-400-7111 and Option 2 is support.
